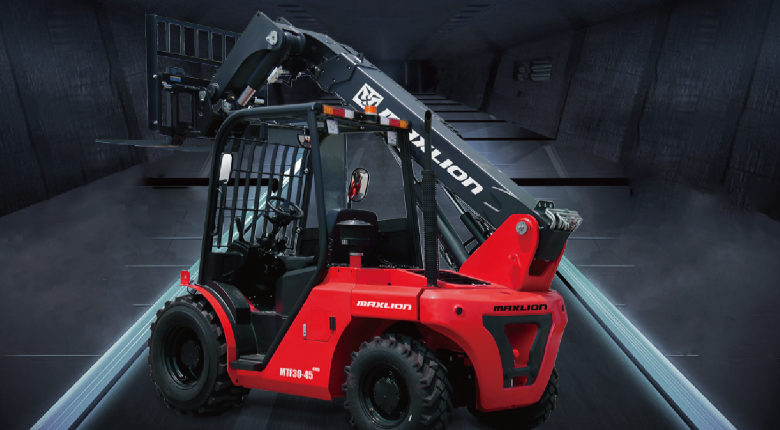

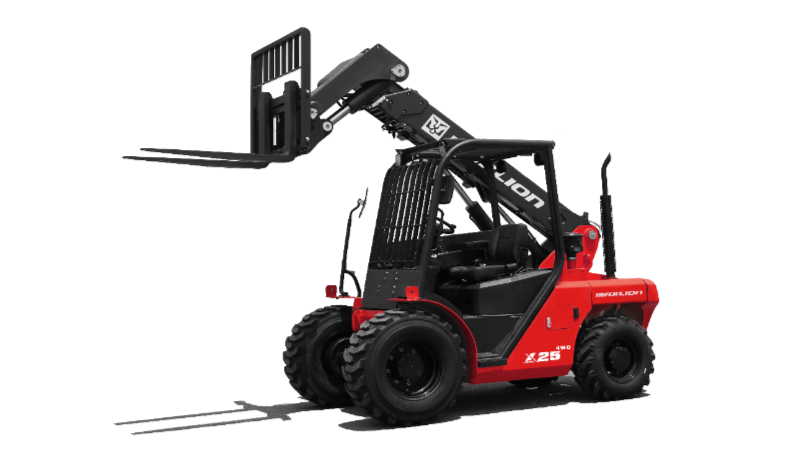

X Series Compact Tele-truck 1.5-3.0T 2WD

Maxlion's X Series Forklift is designed for the driver. Maxlion engineers have focused on improving the comfort and safety for new series forklifts, with lower noise levels, less vibration, more safety, and every small detail carefully designed prepared for the driver.

Simple, Solid, Durable

Ergonomic Design for Comfort

High Cost-effectiveness

Easily Maintenance

Consult Now Maxlion

Concept Description

Video

On-site show

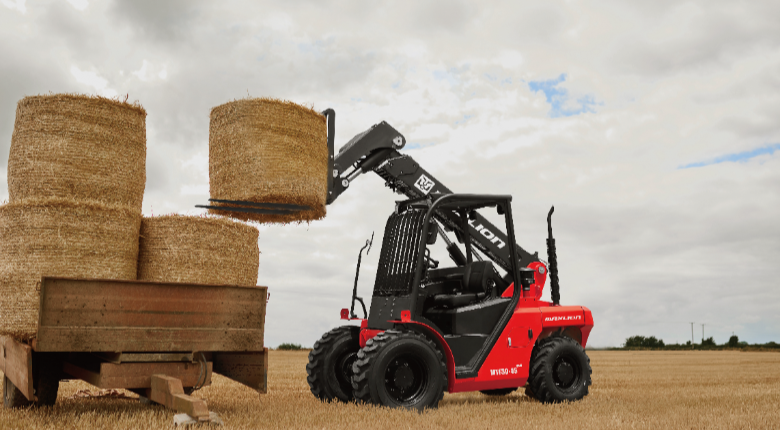

Equipment Application

"Based on the robust foundation of Rough Terrain forklifts, the compact tele-truck takes versatility to a whole new level by integrating a cutting-edge reach function. Adaptable to various industries like mining and agriculture with versatile attachments like loading buckets!"

Features

Technical Specification

Model			MTF30-45 2WD	MTF25-50 2WD	MTF25-60 2WD	MAT15-45 2WD	MAT15-60 2WD
Power type			Diesel
Optional engine			Yanmar 4TNE98/LS L4CRV-T6/Kubota V2403
Rated capacity			3000kg	2500kg	2500kg	1500kg	1500kg
Gradeability(Laden)			16%			20%
Lift height			4500mm	5000mm	6000mm	4500mm	6000mm
Outside Turning Radius			3250mm	3250mm	3250mm	3250mm	3250mm
Overall Dimension	Length(without fork)		3300mm	3500mm	3550mm	3300mm	3550mm
Width			1600mm	1600mm	1600mm	1460mm	1460mm
Height when mast lowered			2280mm	2280mm	2280mm	2230mm	2230mm
Wheelbase			1950mm	1950mm	1950mm	1950mm	1950mm
Ground Clearance			245mm	245mm	245mm	200mm	200mm
Speed	Travel	km/h	18	18	18	18	18
Lifting		mm/sec	450	450	450	450	450
